PBSC Lifeline | Sicurpal

PBSC posts are the perfect solution to secure roofing with reduced supporting structures.

Can be used by up to 4 operators
Device made of AISI 304 stainless steel and pickled clean to avoid corrosion.
Post with two sections of a different diameter to guarantee a low visual impact
215x160 anchoring base, available for double slope supporting structures. Thickness 10 mm with 8 holes - 4 Ø 10mm and 4 Ø 15mm - for an improved grip of the structural screws
The vertical part of the post is designed to deform and enable the maximum reduction of the load exerted on Lifeline end posts (deformable with a strength > 200kg)
Possibility to use the sliding shuttle by installing a suitable fairlead
Laser marked to guarantee product quality
10 year warranty

By downloading the manual below, you can obtain more information as regards responsibilities under the current regulations and device anchoring.

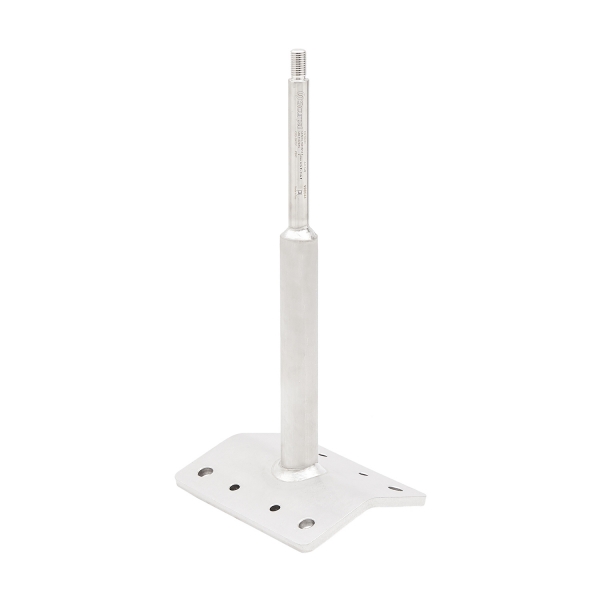

SS PBSC pole
Art. 000137
Pole in stainless steel with base size 160x215x10 mm and 8 bores. Ideal for ridge beam support bases.
Eyebolt+Split p
Art. 000058
Eyebolt and Split pin made in stainless steel AISI 316 Ø16
SS int fairlead
Art. 000501
Intermediate cable support in AISI 304 Stainless Steel. M16 self-locking nut and Ø 16 washer included.
Ver.Fair.Tr.
Art. 000192
Fix Vertical fairlead for trolley with nuts and bolts
0-45Adj.fair.
Art. 001344
Vertical fairlead adj0-45 for Shut
90Fix.vert.fair
Art. 001327
90 Fix vertical fairlead for Shut
90° Tube
Art. 000308
AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 90° corers.
135° Tube
Art. 000307
AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 135° corers.
Straight tube
Art. 000309
AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 180° corers.
Cable dn8
Art. 006650
Cable In AISI 316 stainless steel Ø 8 mm 49 strands with identification bar for product traceability.
Swage
Art. 002477
Tensioner with swage to crimp+nuts and bolts
Tensioner Supp
Art. 000194
AISI 304 Stainless steel support for installation of the pipe turnbuckle or the tube.Hardware included: bolt 16x35 mm and ø16 mm washer in stainless steel.
Tens tog/crimp
Art. 000294
Tensioner Toggle/Turnbuckle to crimp
F/S crimp tens.
Art. 002494
Fork/swage (to crimp) tensioner turnbuckle
Tens. dbl joint
Art. 000032
AISI 316 Stainless steel turnbuckle with closed core for cable tensioning, length 250 mm, with two jointed jaw ends.
F/F tensioner
Art. 002493
AISI 304 Stainless Steel Fork/fork tensioner turnbuckle
Jaw terminal
Art. 000292
Terminal with fixed jaw, with crimping sleeve in stainless steel AISI 304
Jaw terminal
Art. 000293
Terminal with jointed jaw, with crimping sleeve in stainless steel AISI 316
Eye terminal
Art. 003664
Eye terminal for d.8 cable to crimp
Fix dn8 cable
Art. 001513
AISI 304 stainless steel kit for clamping 8 mm diameter cable, composed of: 4 AISI 304 stainless steel clamps, 1 stainless steel thimble d. 8 mm and 2 heat-shrinkable sleeves.
Energy Absorber
Art. 000033
Stainless steel 304 Lifeline Energy Absorber
Quick release
Art. 001758
Quick release carabiner (not usable with SICURSLIM)
Brack. PBS-ST8
Art. 000298
Anchor bracket for PBS-ST8. Ideal to create hoisting lines or connect two lifelines to the same post
Openable travel
Art. 003747
Openable anti-fall cable traveller in AISI 316 stainless steel with carabiner
Fixed cable t.
Art. 003927
Fixed cable trolley for lifeline with AISI 316 stainless steel carabiner
Trolley remov.
Art. 003934
Fixed trolley removal device
Tensioner Seal
Art. 000290
Seal for tensioner block
End of line 355
Art. 003926
End of line UNI 355 signal to be put on the cable
End line STOP
Art. 003935
End of line STOP signal to be put on the cable
End of line PPE
Art. 003924
End of line signal to be put on the cable informing to change the PPE
IT Lifeline sig
Art. 000296
Lifeline sign in Italian
Lifeline signEN
Art. 003354
Lifelines information sign, English version
Lifeline signES
Art. 004738
Lifelines information sign in Spanish
Lifeline FI/SV
Art. 004787
Lifelines information sign in Finnish and Swedish
Lifeline ID
Art. 000291
Lifeline identification code
System Register
Art. 002562
Sicurpal's System Register - Inspection and maintenance
Docubox
Art. 003334
Document holder with fixing kit

Dbl crimp termi
Art. 002789
Double crimping terminals for cable junction dn8, external 12,5 inox aisi 316
Kit B6
Art. 000890
Nuts and bolts kit consisting of: 4 self-lock.+4 d12 washers
Kit B9
Art. 000893
Nuts and bolts kit consisting of: 2 self-lock.+2 washers+2 bolts 12x35
Bar dn12
Art. 000014
Threaded rod dn12 Stainless steel 304 Degreased
Bar dn12x18
Art. 000035
Threaded rod dn12 of 18 cm with bolt
Eco.Resin 410ml
Art. 000021
Econ. two-component resin 410ml
Resin
Art. 002365
High quality resin for renforced concrete and bricks
Res.Nordic400ml
Art. 002124
Nordica 400 ml economic two-component resin - for applications up to -20°
Screw
Art. 000010
Fully threaded screw with countersunk TX40 9x160
Screw
Art. 000245
Fully threaded screw with countersunk TX40 9x200
Screw
Art. 000247
Fully threaded screw with countersunk TX40 9x280
Screw
Art. 000249
Fully threaded screw with countersunk TX40 11x100
Vite t.f 11X200
Art. 003696
Vite Tutto Filetto TX50 11 X 200
Screw
Art. 005940
Fully threaded screw with countersunk TX40 9x160
Washer M10 diam
Art. 000011
Washer M10 diam.
Washer M10 diam
Art. 000250
Washer M10 diam.
Lead V dn40
Art. 000279
Lead V 50x50cm dn40
Black membrane
Art. 002547
Black membrane for PBS/ST8 posts waterproofing
