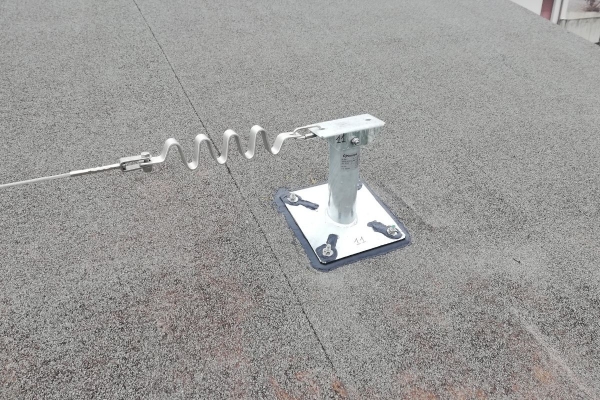

"Post lifeline for the industrial sector"
Basic Line horizontal fall protection systems are designed and manufactured by Sicurpal to provide the market with a low-cost and long-lasting product.
- S235 Hot galvanised steel posts (Fe360)
- Maximum adaptability to different supporting structures thanks to the four types of posts
- Two heights available h50-h30 cm
- Open-base post with double welding for a perfect internal galvanisation
- The internal part of the post can also be inspected after the installation
- Ideal for workers tied with ropes thanks to its rigidity
- 10 year warranty
For further information on the anchoring of devices and on the responsibilities under current regulations, please refer to the downloadable manual below.
-

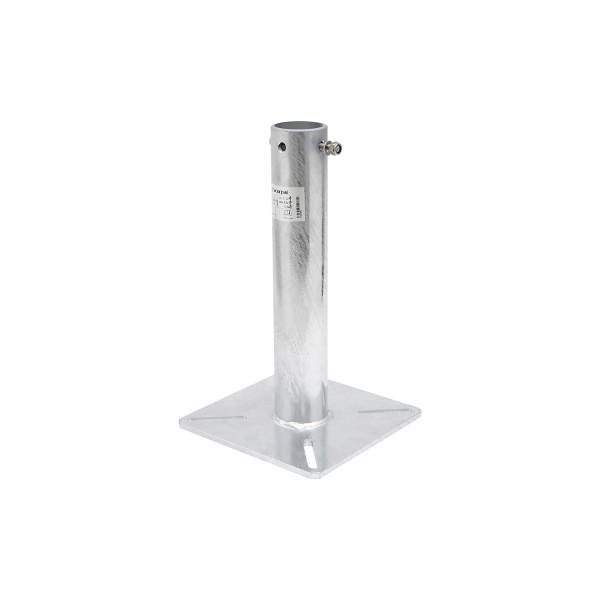

PZP pole h50
Art. 000036 H50cm anchor device certified for EN 795 and CEN/TS 16415 type A and C. Hot dip galvanized steel. Flat fixing base 30cm x 30cm with 4 slots for a maximum comfort during installation -

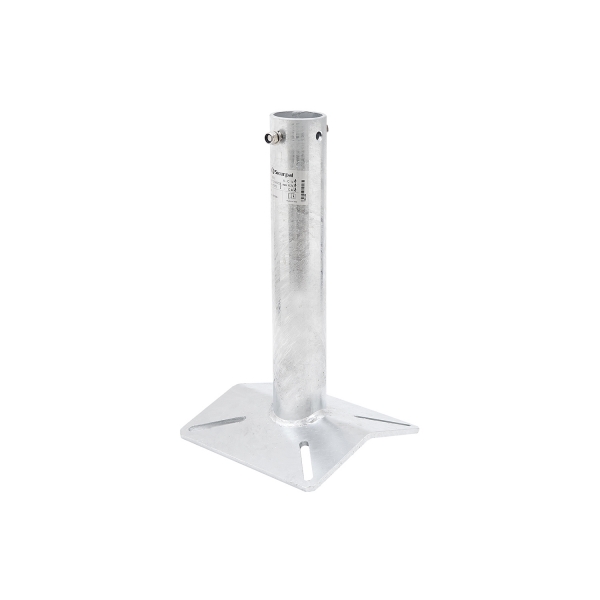

PZC pole h50
Art. 000186 H50cm anchor device certified for EN 795 and CEN/TS 16415 type A and C. Hot dip galvanized steel. Base 30cm x 30cm for ridge with 4 slots for a maximum comfort during installation -

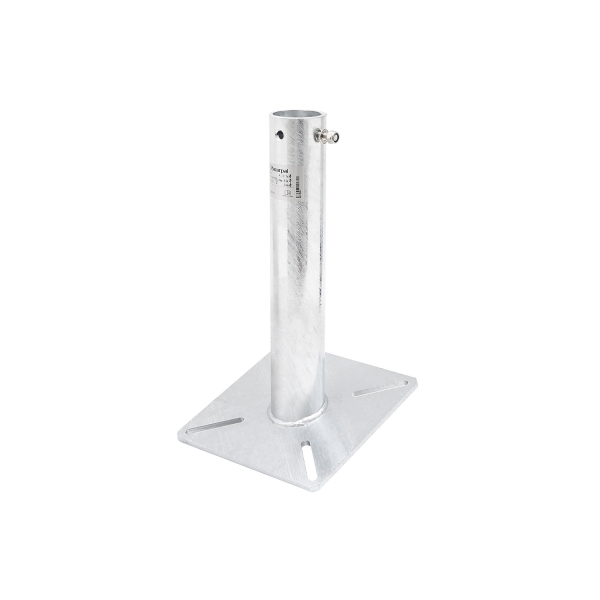

PZI pole h50
Art. 000185 H50cm anchor device certified for EN 795 and CEN/TS 16415 type A and C. Hot dip galvanized steel. Sloped fixing base 30cm x 30cm with 4 slots for a maximum comfort during installation. -

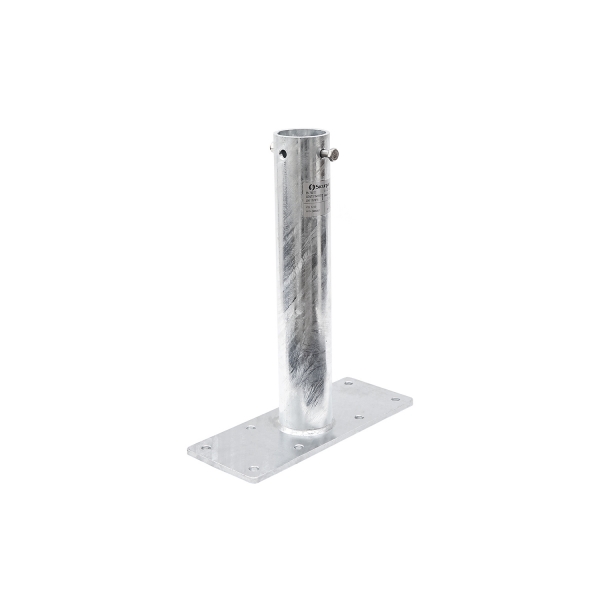

PZL pole h50
Art. 000187 H50cm anchor device certified for EN 795 and CEN/TS 16415 type A and C. Hot dip galvanized steel. Base 40cm x 16cm for wooden beam with 8 bores ideals for threaded bars or wood screws. -

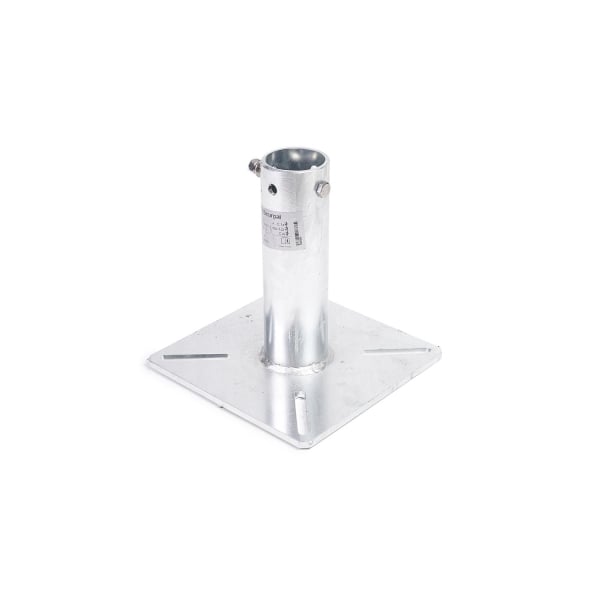

PZP pole h30
Art. 000263 H30cm anchor device certified for EN 795 and CEN/TS 16415 type A and C. Hot dip galvanized steel. Flat fixing base 30cm x 30cm with 4 slots for a maximum comfort during installation. -

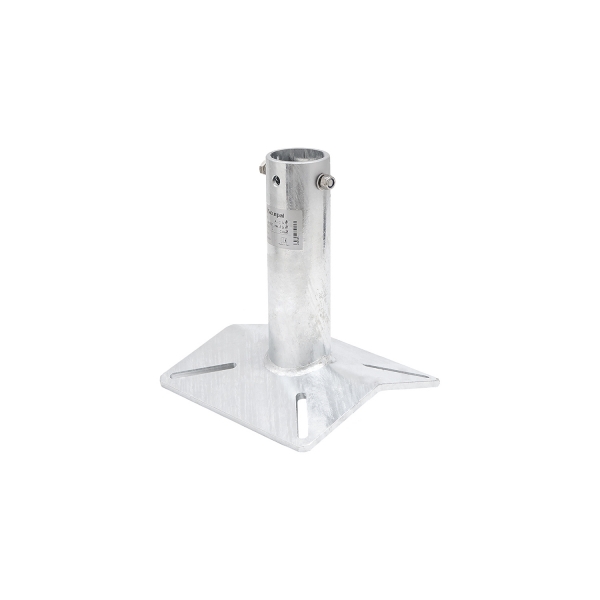

PZC pole h30
Art. 000265 H30cm anchor device certified for EN 795 and CEN/TS 16415 type A and C. Hot dip galvanized steel. Base 30cm x 30cm for ridge beam with 4 slots for a maximum comfort during installation. -

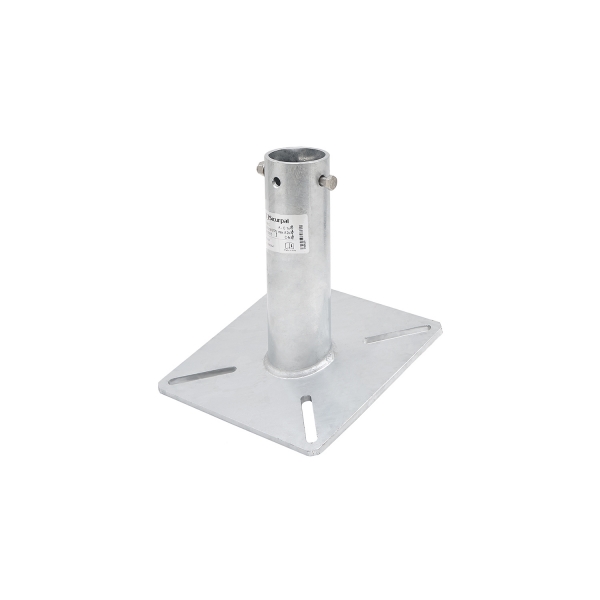

PZI pole h30
Art. 000264 H30cm anchor device certified for EN 795 and CEN/TS 16415 type A and C. Hot dip galvanized steel. Sloped fixing base 30cm x 30cm with 4 slots for a maximum comfort during installation. -

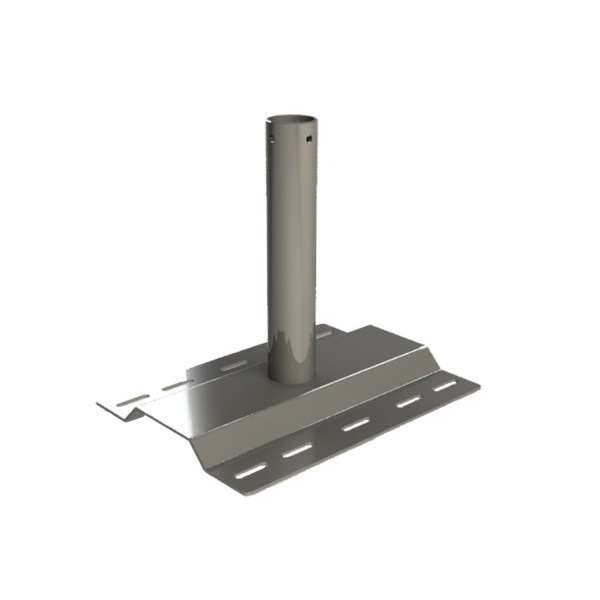

PZP h50 OMEGA
Art. 004780 H50cm anchor device certified for EN 795 and CEN/TS 16415 type A and C. Hot dip galvanized steel. Flat fixing base 58cm x 44cm with 10 slots for a maximum comfort during installation on roof beams -

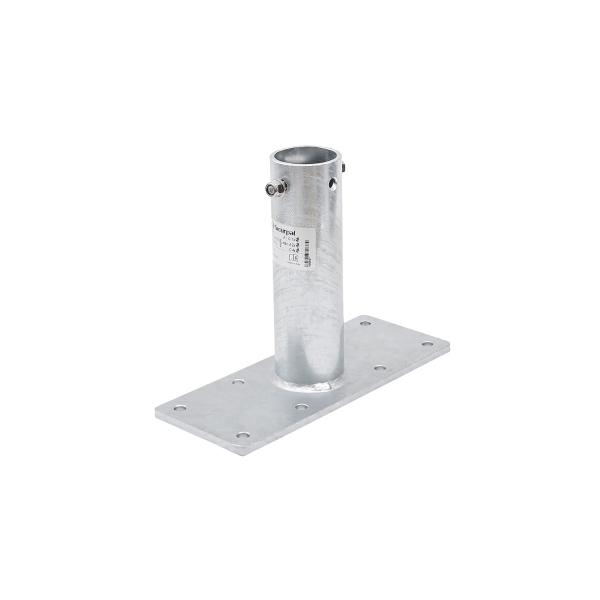

PZL pole h30
Art. 000266 H30cm anchor device certified for EN 795 and CEN/TS 16415 type A and C. Hot dip galvanized steel. Base 40cm x 16cm for wooden beam with 8 bores ideals for threaded bars or wood screws. -

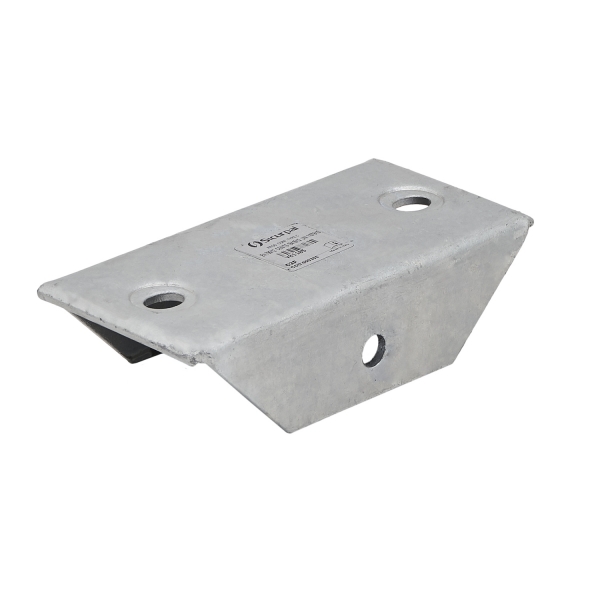

Galvanised End
Art. 000305 Accessory used to create the end points of the lifeline. Made of hot galvanised steel. -

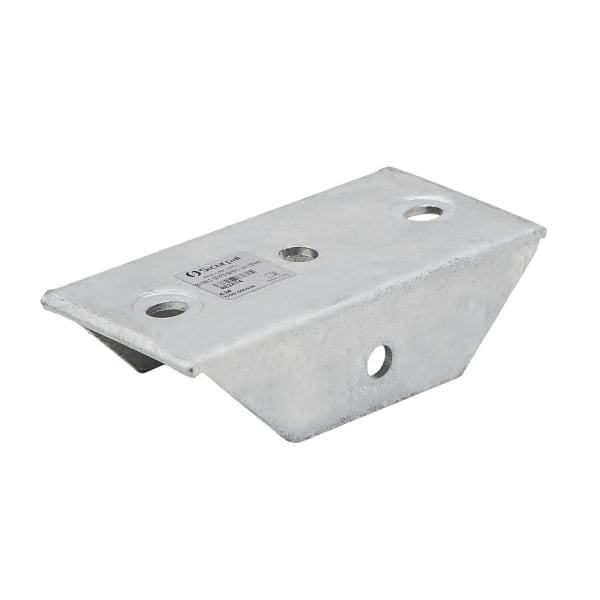

Intermediate
Art. 000038 Accessory used to create the intermediate and/or end points of the lifeline. Made of hot galvanised steel. -
Alu fairlead
Art. 001094 Aluminium by-passable fairlead -
Corner pulley
Art. 000306 Corner cable support with AISI 304 stainless steel elements and aluminium pulley. Hardware included: bolt 16x50 + self-locking nut and ø16 mm stainless steel washer. -
Ver.Fair.Tr.
Art. 000192 Fix Vertical fairlead for trolley with nuts and bolts -
0-45Adj.fair.
Art. 001344 Vertical fairlead adj0-45 for Shut -
90Fix.vert.fair
Art. 001327 90 Fix vertical fairlead for Shut -
90° Tube
Art. 000308 AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 90° corers. -
135° Tube
Art. 000307 AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 135° corers. -
Straight tube
Art. 000309 AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 180° corers. -
Cable dn8
Art. 006650 Cable In AISI 316 stainless steel Ø 8 mm 49 strands with identification bar for product traceability. -
Swage
Art. 002477 Tensioner with swage to crimp+nuts and bolts -
Tensioner Supp
Art. 000194 AISI 304 Stainless steel support for installation of the pipe turnbuckle or the tube.Hardware included: bolt 16x35 mm and ø16 mm washer in stainless steel. -
Tens tog/crimp
Art. 000294 Tensioner Toggle/Turnbuckle to crimp -
F/S crimp tens.
Art. 002494 Fork/swage (to crimp) tensioner turnbuckle -
Tens. dbl joint
Art. 000032 AISI 316 Stainless steel turnbuckle with closed core for cable tensioning, length 250 mm, with two jointed jaw ends. -
F/F tensioner
Art. 002493 AISI 304 Stainless Steel Fork/fork tensioner turnbuckle -
Jaw terminal
Art. 000292 Terminal with fixed jaw, with crimping sleeve in stainless steel AISI 304 -
Jaw terminal
Art. 000293 Terminal with jointed jaw, with crimping sleeve in stainless steel AISI 316 -
Eye terminal
Art. 003664 Eye terminal for d.8 cable to crimp -
Fix dn8 cable
Art. 001513 AISI 304 stainless steel kit for clamping 8 mm diameter cable, composed of: 4 AISI 304 stainless steel clamps, 1 stainless steel thimble d. 8 mm and 2 heat-shrinkable sleeves. -

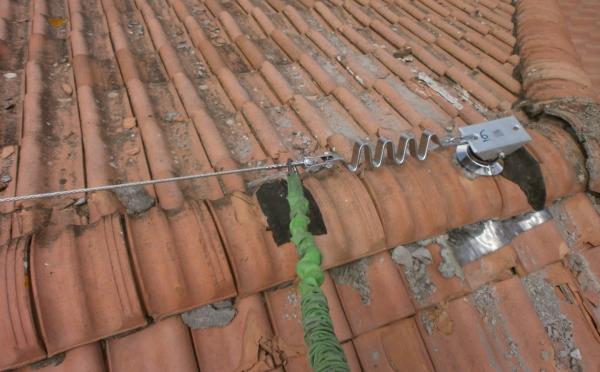

Energy Absorber
Art. 000033 Stainless steel 304 Lifeline Energy Absorber -
Quick release
Art. 001758 Quick release carabiner (not usable with SICURSLIM) -

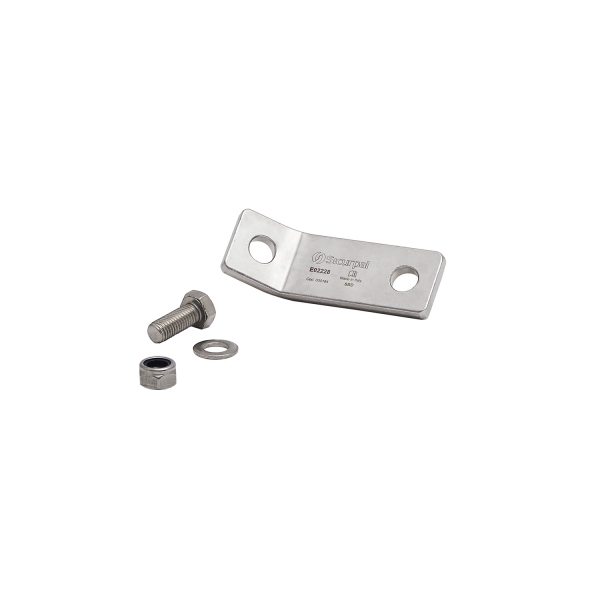

Bidir. bracket
Art. 000184 Bracket use to change the trajectory of the lifeline cable. Manufactured in AISI 304 Stainless steel. -
Openable travel
Art. 003747 Openable anti-fall cable traveller in AISI 316 stainless steel with carabiner -
Fixed cable t.
Art. 003927 Fixed cable trolley for lifeline with AISI 316 stainless steel carabiner -
Trolley remov.
Art. 003934 Fixed trolley removal device -
Tensioner Seal
Art. 000290 Seal for tensioner block -
End line STOP
Art. 003935 End of line STOP signal to be put on the cable -
End of line PPE
Art. 003924 End of line signal to be put on the cable informing to change the PPE -
End of line 355
Art. 003926 End of line UNI 355 signal to be put on the cable -
IT Lifeline sig
Art. 000296 Lifeline sign in Italian -
Lifeline FI/SV
Art. 004787 Lifelines information sign in Finnish and Swedish -
Lifeline signEN
Art. 003354 Lifelines information sign, English version -
Lifeline signES
Art. 004738 Lifelines information sign in Spanish -
Lifeline ID
Art. 000291 Lifeline identification code -
System Register
Art. 002562 Sicurpal's System Register - Inspection and maintenance -
Docubox
Art. 003334 Document holder with fixing kit
-
Dbl crimp termi
Art. 002789 Double crimping terminals for cable junction dn8, external 12,5 inox aisi 316 -
Kit B3
Art. 000887 Nuts and bolts kit consisting of: 8 self-lock.+8 d12 washers -
Kit B6
Art. 000890 Nuts and bolts kit consisting of: 4 self-lock.+4 d12 washers -
Kit B9
Art. 000893 Nuts and bolts kit consisting of: 2 self-lock.+2 washers+2 bolts 12x35 -
Bar dn12
Art. 000014 Threaded rod dn12 Stainless steel 304 Degreased -
Bar dn12x18
Art. 000035 Threaded rod dn12 of 18 cm with bolt -
Eco.Resin 410ml
Art. 000021 Econ. two-component resin 410ml -
Resin
Art. 002365 High quality resin for renforced concrete and bricks -
Res.Nordic400ml
Art. 002124 Nordica 400 ml economic two-component resin - for applications up to -20° -
Screw
Art. 000010 Fully threaded screw with countersunk TX40 9x160 -
Screw
Art. 000245 Fully threaded screw with countersunk TX40 9x200 -
Screw
Art. 000247 Fully threaded screw with countersunk TX40 9x280 -
Screw
Art. 000249 Fully threaded screw with countersunk TX40 11x100 -
Vite t.f 11X200
Art. 003696 Vite Tutto Filetto TX50 11 X 200 -
Screw
Art. 005940 Fully threaded screw with countersunk TX40 9x160 -
Washer M10 diam
Art. 000011 Washer M10 diam. -
Washer M10 diam
Art. 000250 Washer M10 diam. -
SS gutter dn90
Art. 000018 Stainless steel gutter dn90 with gasket -
Lead dn90
Art. 000017 Lead V 50x50cm dn90
