green roof fall protection
green roof fall protectiongreen roof fall protection

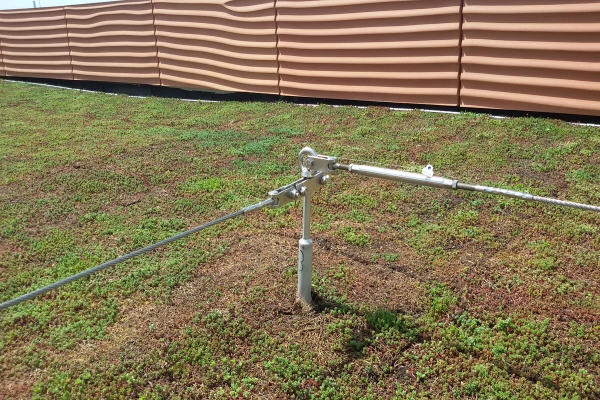

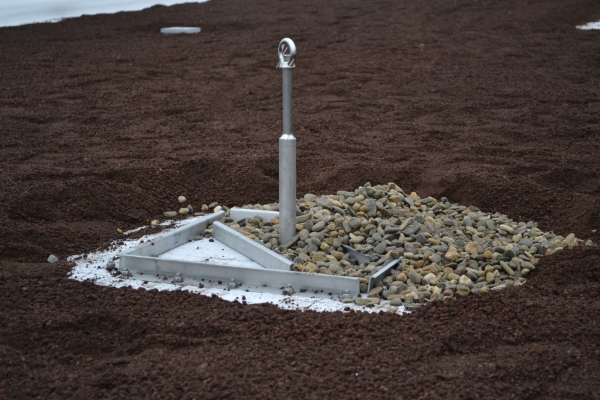

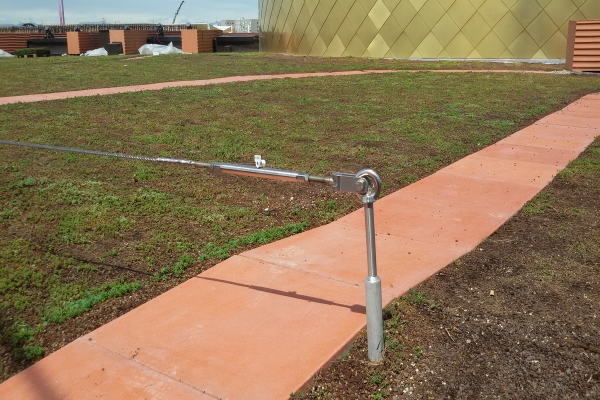

Green roofs are one of the best solutions for thermal insulation but require frequent maintenance. That is why a system guaranteeing the safety of maintenance operators must be included in the designing stage. Sicurpal found the best solution for this requirement: PTV is a fall protection system that can be installed in only 8 cm of soil - the weight of the various components of the system can be in fact used to secure it without piercing the roofing or waterproofing membrane.

  • Anchorage device compliant with standards EN 795:2012 and CEN/TS 16415:2013
  • Can be used simultaneously by two people for Type A
  • Can be used simultaneously by three people for Type C
  • Structure made entirely of AISI 304 stainless steel with pickled treatment against corrosion
  • Can be installed on all kinds of roofing with a maximum slope of 5°
  • Post height 40 cm
  • 10 year warranty

For further information on device anchoring and on the responsibilities under current regulations, please download the manual below.

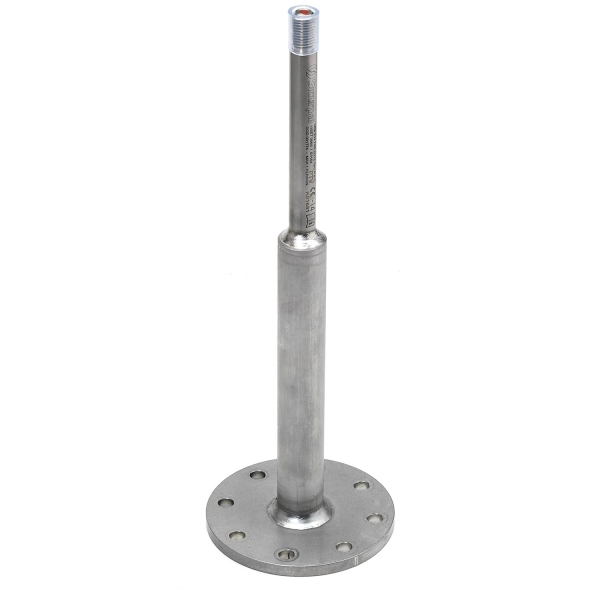

  • PTV pole
    Art. 001774
    Anchor post in AISI 304 Stainless steel with circular base with diameter 150 mm and height h 430 mm. Ideal for green roofs.

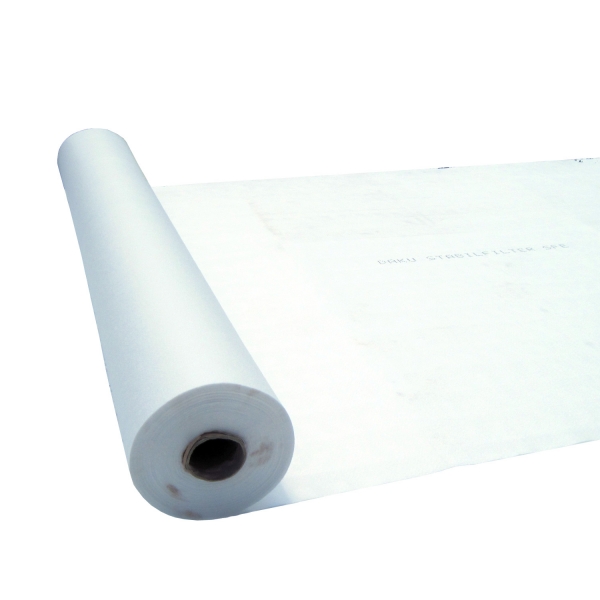

  • Stabifilter SFE
    Art. 006851
    Non-woven geotextile in white polypropylene. roll size 2.00 x 50 m (100 sq.m) price per sq.m

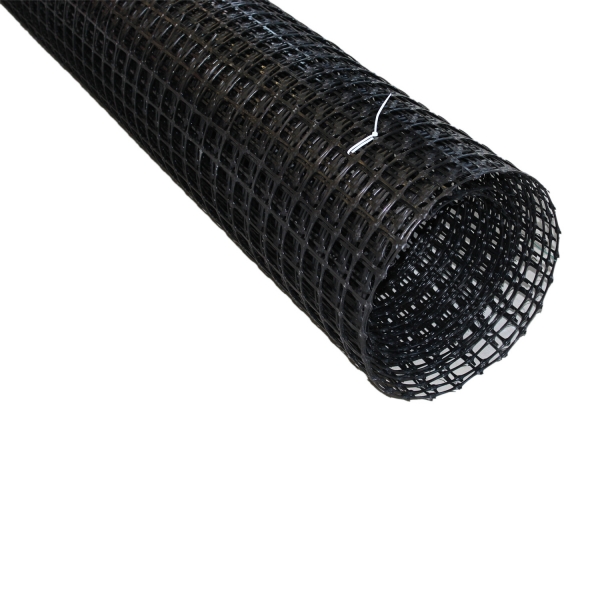

  • Rete Grid5
    Art. 006852
    Black geogrid in black polypropylene to make the ballast support. roll size 4.00 x 50 m (200 sq.m) price per sq.m

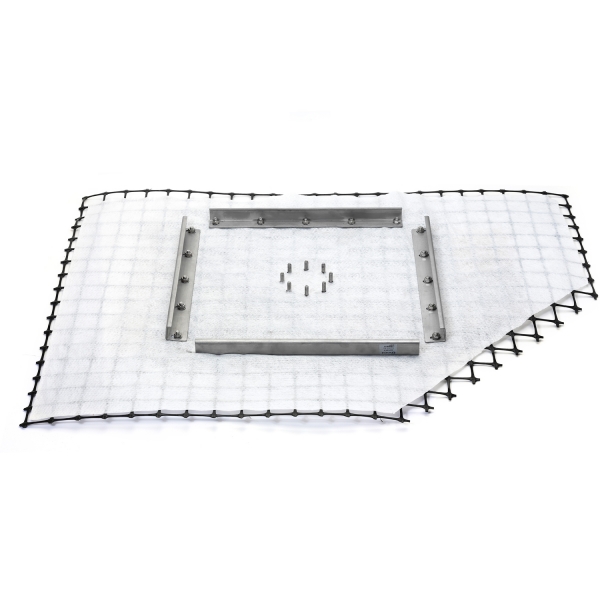

  • Kit Fix PTV A
    Art. 002115
    Fixing base for A type PTV pole for Green roofs, excluding net and fabric cloth

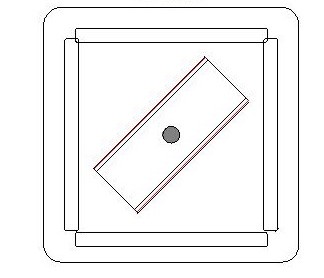

  • Kit Fix PTV C
    Art. 002116
    Fixing base for C type PTV pole for Green roofs, excluding net and fabric cloth
  • Eyebolt+Split p
    Art. 000058
    Eyebolt and Split pin made in stainless steel AISI 316 Ø16
  • SS int fairlead
    Art. 000501
    Intermediate cable support in AISI 304 Stainless Steel. M16 self-locking nut and Ø 16 washer included.
  • Ver.Fair.Tr.
    Art. 000192
    Fix Vertical fairlead for trolley with nuts and bolts
  • 0-45Adj.fair.
    Art. 001344
    Vertical fairlead adj0-45 for Shut
  • 90° Tube
    Art. 000308
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 90° corers.
  • 135° Tube
    Art. 000307
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 135° corers.
  • Straight tube
    Art. 000309
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 180° corers.
  • Cable dn8
    Art. 006650
    Cable In AISI 316 stainless steel Ø 8 mm 49 strands with identification bar for product traceability.
  • Swage
    Art. 002477
    Tensioner with swage to crimp+nuts and bolts
  • Tensioner Supp
    Art. 000194
    AISI 304 Stainless steel support for installation of the pipe turnbuckle or the tube.Hardware included: bolt 16x35 mm and ø16 mm washer in stainless steel.
  • Tens tog/crimp
    Art. 000294
    Tensioner Toggle/Turnbuckle to crimp
  • F/S crimp tens.
    Art. 002494
    Fork/swage (to crimp) tensioner turnbuckle
  • Jaw terminal
    Art. 000292
    Terminal with fixed jaw, with crimping sleeve in stainless steel AISI 304
  • Jaw terminal
    Art. 000293
    Terminal with jointed jaw, with crimping sleeve in stainless steel AISI 316
  • Fix dn8 cable
    Art. 001513
    AISI 304 stainless steel kit for clamping 8 mm diameter cable, composed of: 4 AISI 304 stainless steel clamps, 1 stainless steel thimble d. 8 mm and 2 heat-shrinkable sleeves.
  • Brack. PBS-ST8
    Art. 000298
    Anchor bracket for PBS-ST8. Ideal to create hoisting lines or connect two lifelines to the same post
  • Openable travel
    Art. 003747
    Openable anti-fall cable traveller in AISI 316 stainless steel with carabiner
  • Fixed cable t.
    Art. 003927
    Fixed cable trolley for lifeline with AISI 316 stainless steel carabiner
  • Trolley remov.
    Art. 003934
    Fixed trolley removal device
  • Tensioner Seal
    Art. 000290
    Seal for tensioner block
  • End of line PPE
    Art. 003924
    End of line signal to be put on the cable informing to change the PPE
  • End of line 355
    Art. 003926
    End of line UNI 355 signal to be put on the cable
  • End line STOP
    Art. 003935
    End of line STOP signal to be put on the cable
  • IT Lifeline sig
    Art. 000296
    Lifeline sign in Italian
  • Lifeline signES
    Art. 004738
    Lifelines information sign in Spanish
  • Lifeline signEN
    Art. 003354
    Lifelines information sign, English version
  • Lifeline FI/SV
    Art. 004787
    Lifelines information sign in Finnish and Swedish
  • Lifeline ID
    Art. 000291
    Lifeline identification code
  • System Register
    Art. 002562
    Sicurpal's System Register - Inspection and maintenance
  • Docubox
    Art. 003334
    Document holder with fixing kit
  • Dbl crimp termi
    Art. 002789
    Double crimping terminals for cable junction dn8, external 12,5 inox aisi 316
