Wall fixture

VKC EVO Guardrail Systems

Guardrails are a collective fall protection system

To protect operators working at a height, the installation of collective fall protection devices must be prioritised with respect to individual fall protection devices.

Thanks to their aluminium structure and special wedge shape, Sicurpal's guardrails are extremely light and have a low visual impact.

  • Guardrail compliant with standard EN 14122-3
  • 30 kg/metre load on horizontal tubes (outward push)
  • Anodised aluminium structure
  • Can be customised with epoxy varnishing and RAL colours
  • Posts have a triangular shape for a lower visual impact
  • Both horizontal handrails can be adjusted simultaneously
  • Curves can be continuously adjusted
  • Ends anchored to the wall
  • Vertical, tipping or tilted guardrail available
  • Various accessories available
  • 10 year warranty
  • STRT upr 1182mm
    Art. 006649
    Straight upright 1182 mm high for VKC EVO guardrails with slot diameter 45
  • STR8 UP 1300mm
    Art. 007000
    Straight Upright 1300 mm high with slot diameter 45 for VKC EVO guardail.
  • STR8 UP 1400mm
    Art. 008072
    Straight Upright 1400 mm high with slot diameter 45 for VKC EVO guardail.
  • Inclin upr 1165
    Art. 006968
    Inclined upright 1165 mm high for VKC EVO guardrails with slot diameter 45
  • Fold upr 1105mm
    Art. 006969
    Folding upright 1105 mm high for VKC EVO guardrail with slot diameter 45
  • Cap 68X28 mm
    Art. 006940
    Cap 68X28 mm notch Ø 45mm EVO

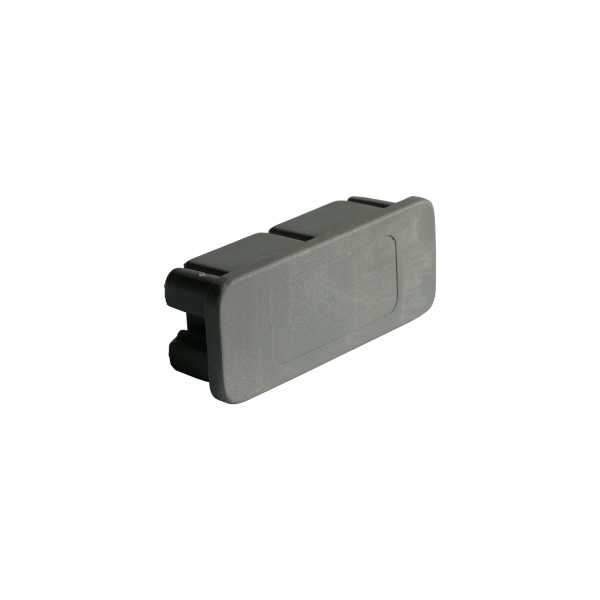

  • Grey cap 65x24
    Art. 007548
    Grey cap 65x24 for VKC upright
  • VKC EVO Kit
    Art. 007615
    Bolting kit consisting of: 10x screws 4.8x25

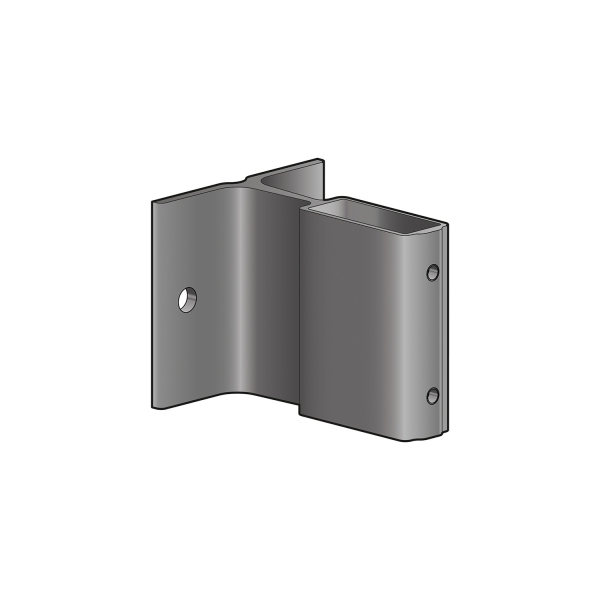

  • Mount plate 60
    Art. 002845
    Mounting plate for wall fixture VKC upright with 60mm offset

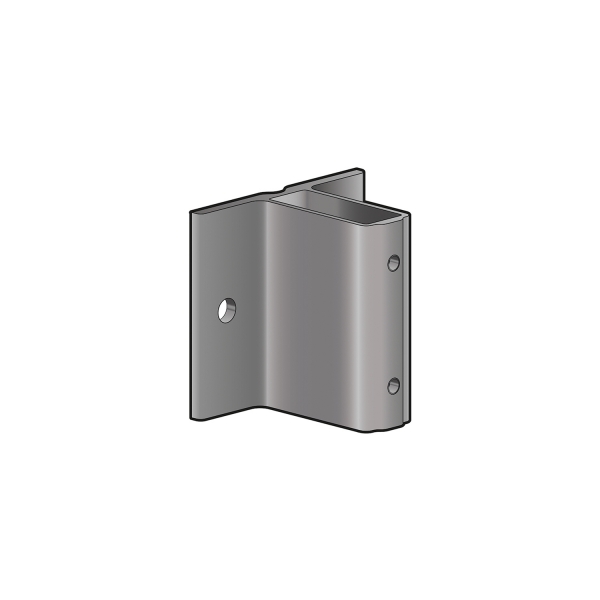

  • Mount plate
    Art. 002382
    Mounting plate for wall fixture VKC upright with no offset

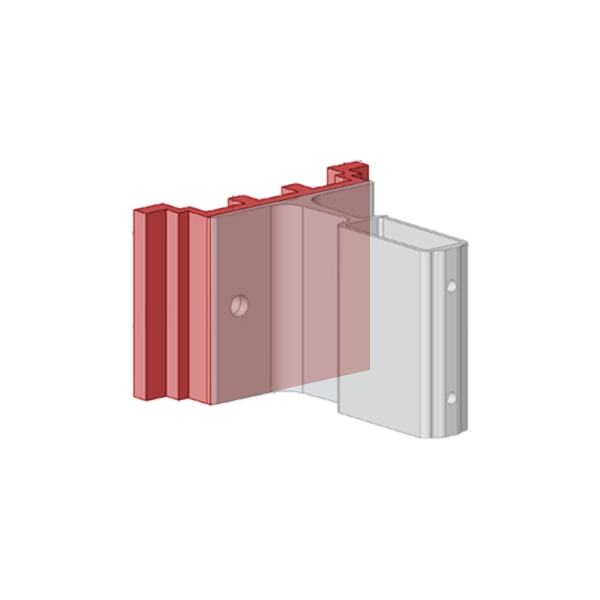

  • Additional spac
    Art. 008162
    Additional spacer for VKC upright base wall mounting. Maximum offset of 116 mm. (wall base NOT included)
  • Swg knee rail
    Art. 002376
    Swaged knee rail 3m long for VKC guardrails
  • SWG hr EVO
    Art. 006645
    Swaged handrail Ø45 mm length 3m for VKC EVO guardrails
  • Knee rail cap
    Art. 002352
    35 mm diameter knee rail end cap for VKC guardrail
  • Handrail capEVO
    Art. 006647
    45 mm diameter handrail end cap for VKC EVO guardrail
  • HR corner kit
    Art. 007616
    Kit consisting of one 45 mm diameter handrail corner angle joint for the VKC EVO guardrail and 2x 4.8x25 screws
  • Kr corner kit
    Art. 007617
    Kit consisting of one 35 mm diameter knee rail corner angle joint for the VKC EVO guardrail and 2x 4.8x25 screws
  • Kr wall connect
    Art. 007619
    Kit consisting of one wall connector for the 35 mm diameter knee rail of the VKC EVO guardrail and 1x screw 4.8x25
  • Hr wall connect
    Art. 007618
    Kit consisting of one wall connector for the 45 mm diameter handrail of the VKC EVO guardrail and 1x screw 4.8x25
  • Reinf Toeboard
    Art. 004433
    Reinforced toeboard 150 mm high and 3000 mm long for VKC guardrail
  • Corner VKC TB
    Art. 005434
    Corner connection kit for reinforced VKC toeboard h150 with 8 self-drilling screws 4.8x16
  • STR connec TB
    Art. 005432
    Straight connector kit for joining the reinforced VKC toeboards with 4 self-drilling screws 4.8x16
  • Cap VKC Toeboar
    Art. 005431
    Cap kit for reinforced VKC toeboard h150 with 1x self-drilling screw 4.8x16
  • Guardrail gate
    Art. 002349
    VKC guardrail gate including hinges, uprights not included
