LVBD

Low-visibility lifeline

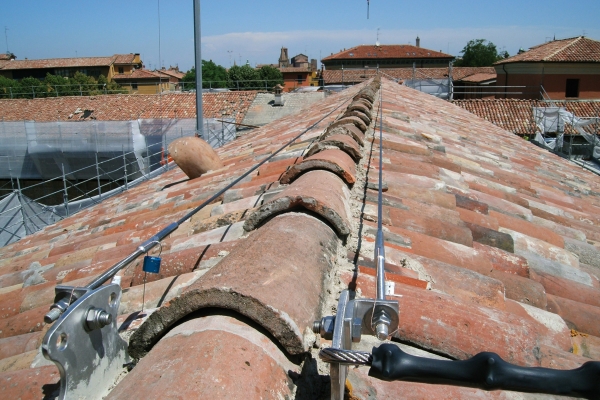

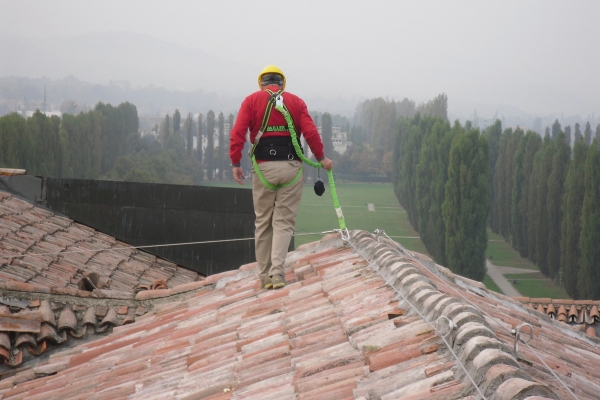

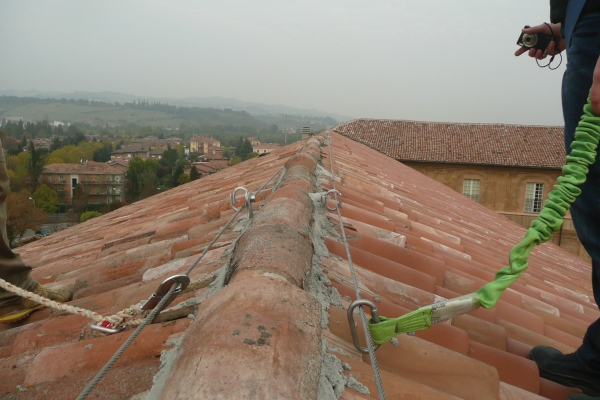

Sicurpal's LVBD plates are the ideal anchorage system for buildings of a high artistic-cultural value, guaranteeing excellent ergonomics for users - who can work on both pitches - while remaining invisible.

  • Cantilevered fixing up to 20 cm from the last fixing/rafter through 4 holes with 4 Ø12mm threaded bars with nut and counternut
  • 3 holes to anchor compatible accessories or to be used as anchorage points
  • Made of pickled AISI 304 stainless steel
  • 10 year warranty.

For further info on responsibilities under the current regulations and on device anchoring, please refer to the downloadable manual below.

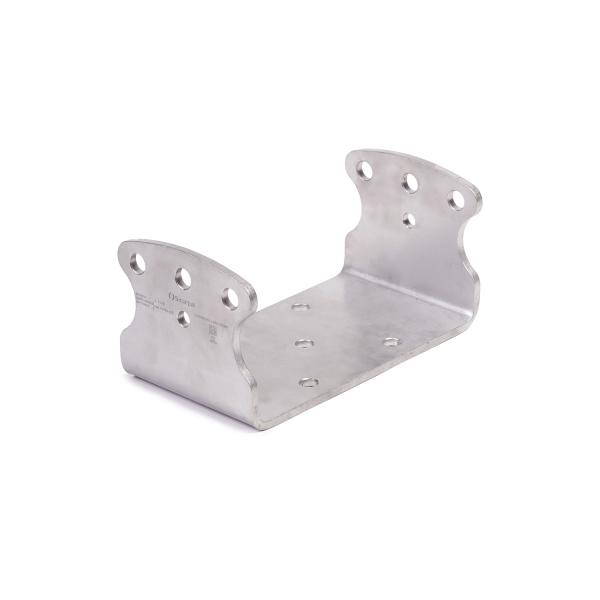

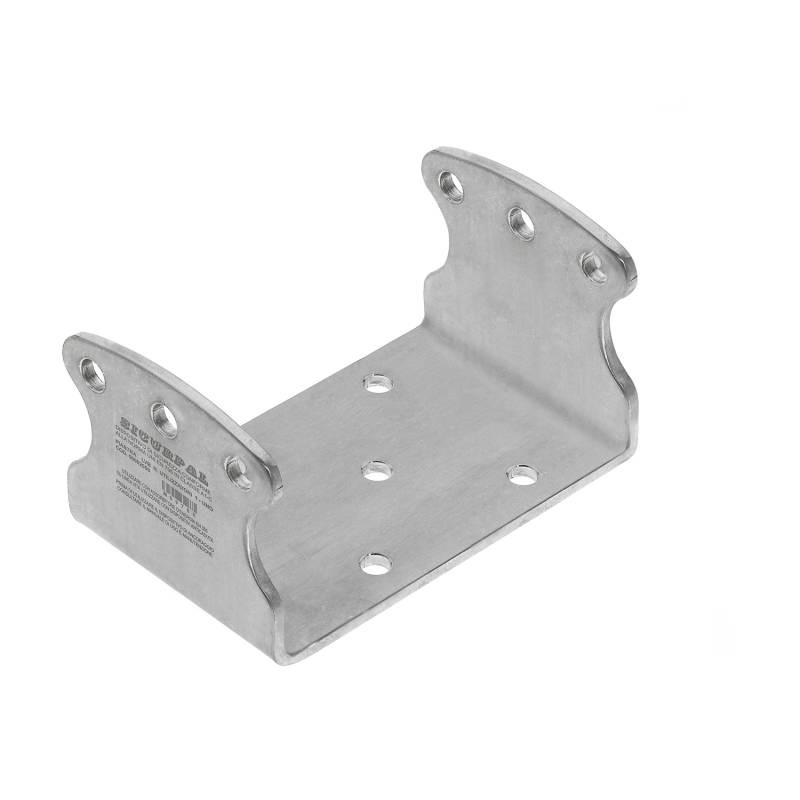

  • LVBD plate
    Art. 001516
    Stainless steel double connection device, enabling the lifeline to be fitted on both pitches of the roof. Base size 285x150x8 mm with 4 fixing holes.

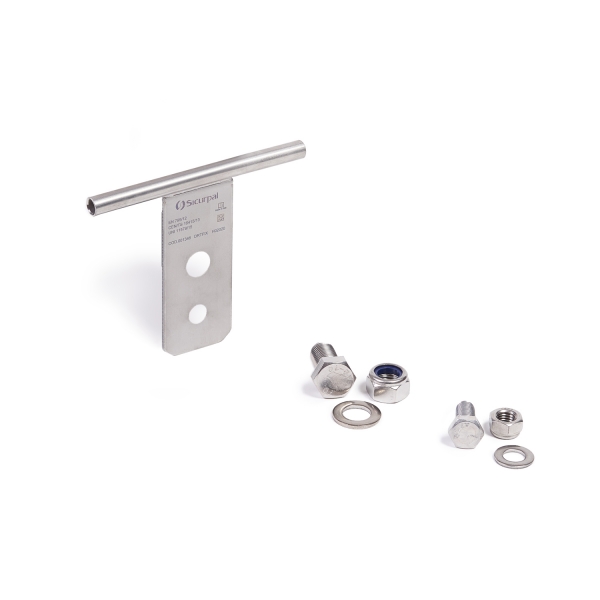

  • Fix straig.fair
    Art. 001346
    Fix straight fairlead for traveller

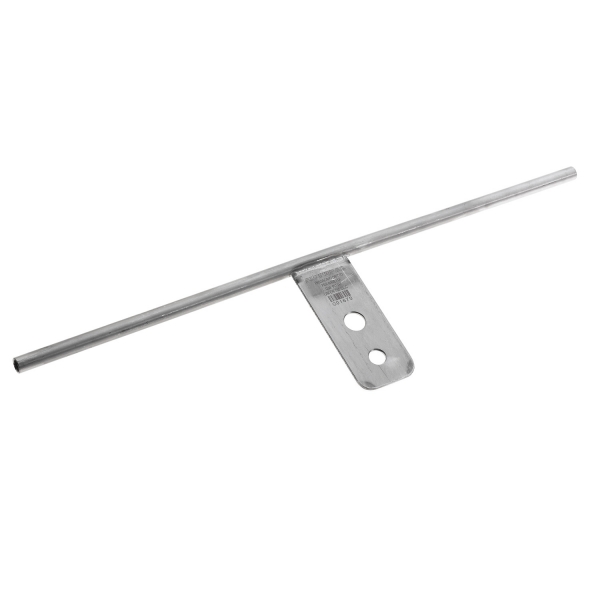

  • 0-45Straig.fair
    Art. 001347
    Straight fairlead adj 0-45 for traveller
  • Alu fairlead
    Art. 001094
    Aluminium by-passable fairlead

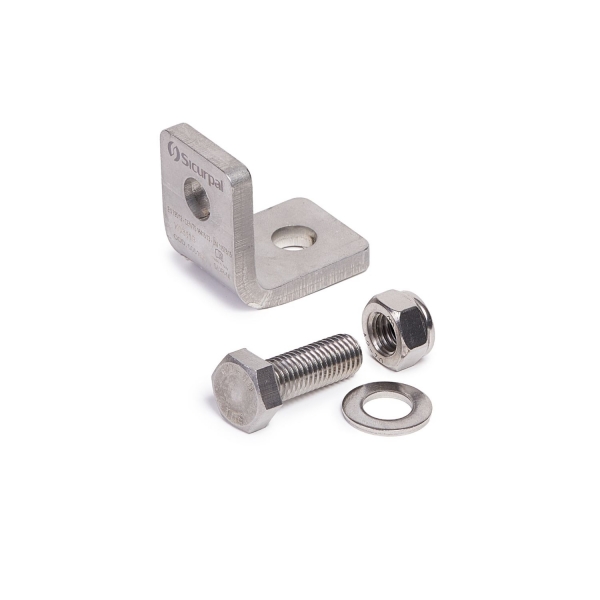

  • Mini-Supp Tens
    Art. 000765
    AISI 304 stainless steel mini support for installation of the turnbuckle or guide pipe. Hardware included: bolt 16x35 mm and ø16 mm washer in stainless steel.
  • 90° Tube
    Art. 000308
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 90° corers.
  • 135° Tube
    Art. 000307
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 135° corers.
  • Straight tube
    Art. 000309
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 180° corers.
  • Cable dn8
    Art. 006650
    Cable In AISI 316 stainless steel Ø 8 mm 49 strands with identification bar for product traceability.
  • Swage
    Art. 002477
    Tensioner with swage to crimp+nuts and bolts
  • Tensioner Supp
    Art. 000194
    AISI 304 Stainless steel support for installation of the pipe turnbuckle or the tube.Hardware included: bolt 16x35 mm and ø16 mm washer in stainless steel.
  • Tens tog/crimp
    Art. 000294
    Tensioner Toggle/Turnbuckle to crimp
  • F/S crimp tens.
    Art. 002494
    Fork/swage (to crimp) tensioner turnbuckle
  • Tens. dbl joint
    Art. 000032
    AISI 316 Stainless steel turnbuckle with closed core for cable tensioning, length 250 mm, with two jointed jaw ends.
  • F/F tensioner
    Art. 002493
    AISI 304 Stainless Steel Fork/fork tensioner turnbuckle
  • Jaw terminal
    Art. 000292
    Terminal with fixed jaw, with crimping sleeve in stainless steel AISI 304
  • Jaw terminal
    Art. 000293
    Terminal with jointed jaw, with crimping sleeve in stainless steel AISI 316
  • Fix dn8 cable
    Art. 001513
    AISI 304 stainless steel kit for clamping 8 mm diameter cable, composed of: 4 AISI 304 stainless steel clamps, 1 stainless steel thimble d. 8 mm and 2 heat-shrinkable sleeves.
  • Eye terminal
    Art. 003664
    Eye terminal for d.8 cable to crimp
  • Energy Absorber
    Art. 000033
    Stainless steel 304 Lifeline Energy Absorber
  • Quick release
    Art. 001758
    Quick release carabiner (not usable with SICURSLIM)
  • Openable travel
    Art. 003747
    Openable anti-fall cable traveller in AISI 316 stainless steel with carabiner
  • Fixed cable t.
    Art. 003927
    Fixed cable trolley for lifeline with AISI 316 stainless steel carabiner
  • Tensioner Seal
    Art. 000290
    Seal for tensioner block
  • End of line 355
    Art. 003926
    End of line UNI 355 signal to be put on the cable
  • End line STOP
    Art. 003935
    End of line STOP signal to be put on the cable
  • End of line PPE
    Art. 003924
    End of line signal to be put on the cable informing to change the PPE
  • IT Lifeline sig
    Art. 000296
    Lifeline sign in Italian
  • Lifeline signEN
    Art. 003354
    Lifelines information sign, English version
  • Lifeline FI/SV
    Art. 004787
    Lifelines information sign in Finnish and Swedish
  • Lifeline signES
    Art. 004738
    Lifelines information sign in Spanish
  • Lifeline ID
    Art. 000291
    Lifeline identification code
  • System Register
    Art. 002562
    Sicurpal's System Register - Inspection and maintenance
  • Docubox
    Art. 003334
    Document holder with fixing kit

Components to be combined with this lifeline

  • Dbl crimp termi
    Art. 002789
    Double crimping terminals for cable junction dn8, external 12,5 inox aisi 316

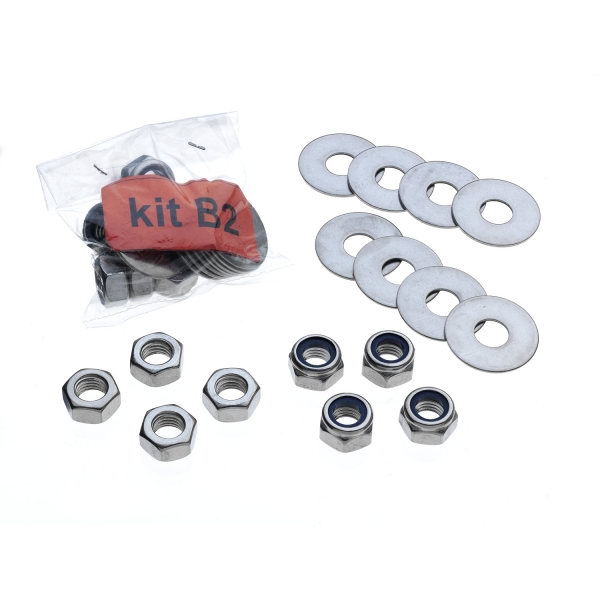

  • Kit B2
    Art. 000886
    Nuts and bolts kit consisting of: 4 self-lock.+4 nuts+8 d12 washers
  • Kit B9
    Art. 000893
    Nuts and bolts kit consisting of: 2 self-lock.+2 washers+2 bolts 12x35
  • Bar dn12
    Art. 000014
    Threaded rod dn12 Stainless steel 304 Degreased
  • Eco.Resin 410ml
    Art. 000021
    Econ. two-component resin 410ml
  • Resin
    Art. 002365
    High quality resin for renforced concrete and bricks
  • Res.Nordic400ml
    Art. 002124
    Nordica 400 ml economic two-component resin - for applications up to -20°
  • Screw
    Art. 000010
    Fully threaded screw with countersunk TX40 9x160
  • Screw
    Art. 000245
    Fully threaded screw with countersunk TX40 9x200
  • Screw
    Art. 000247
    Fully threaded screw with countersunk TX40 9x280
  • Screw
    Art. 000249
    Fully threaded screw with countersunk TX40 11x100
  • Screw
    Art. 005940
    Fully threaded screw with countersunk TX40 9x160
  • Vite t.f 11X200
    Art. 003696
    Vite Tutto Filetto TX50 11 X 200
  • Washer M10 diam
    Art. 000011
    Washer M10 diam.
  • Washer M10 diam
    Art. 000250
    Washer M10 diam.
